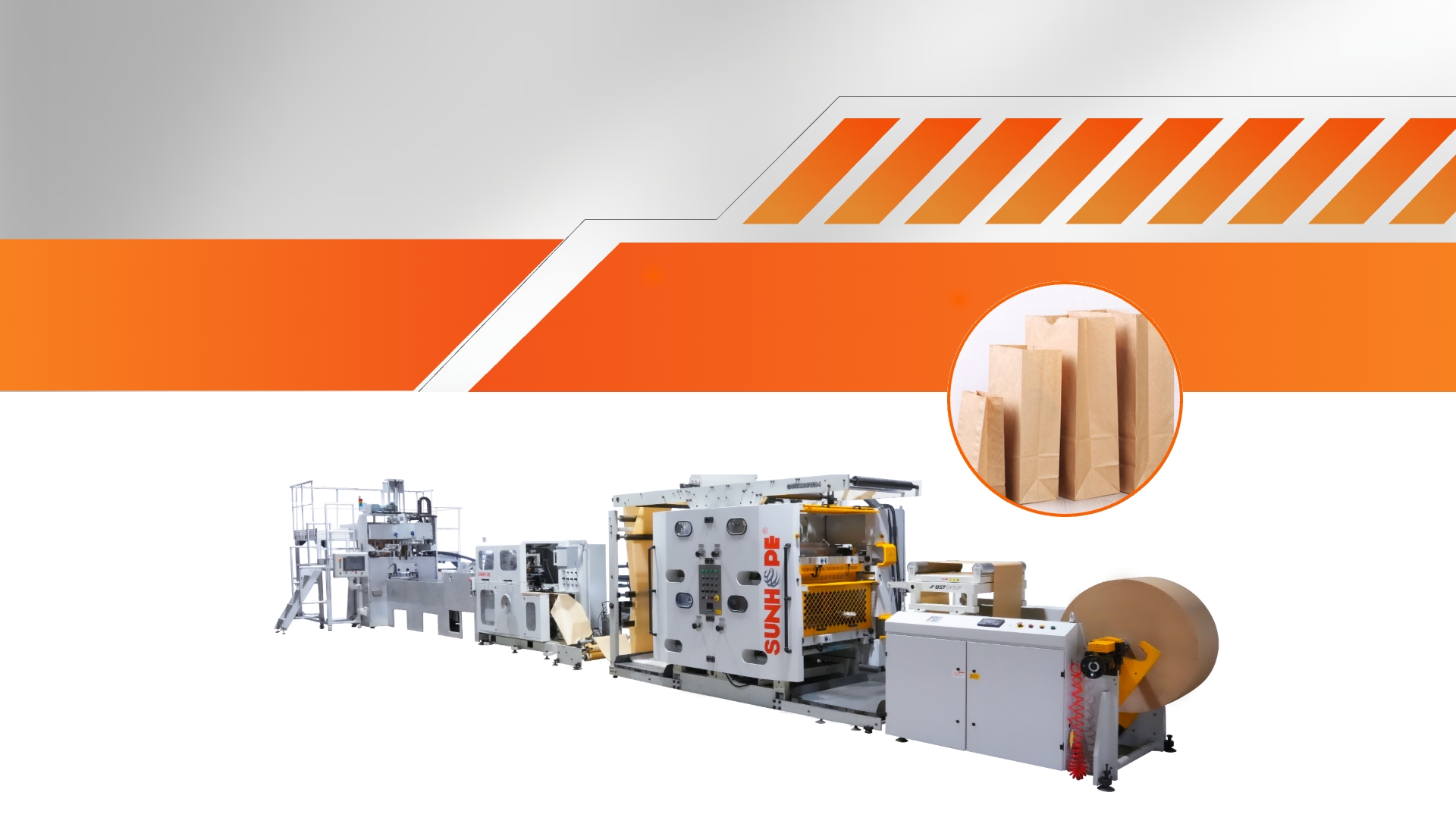

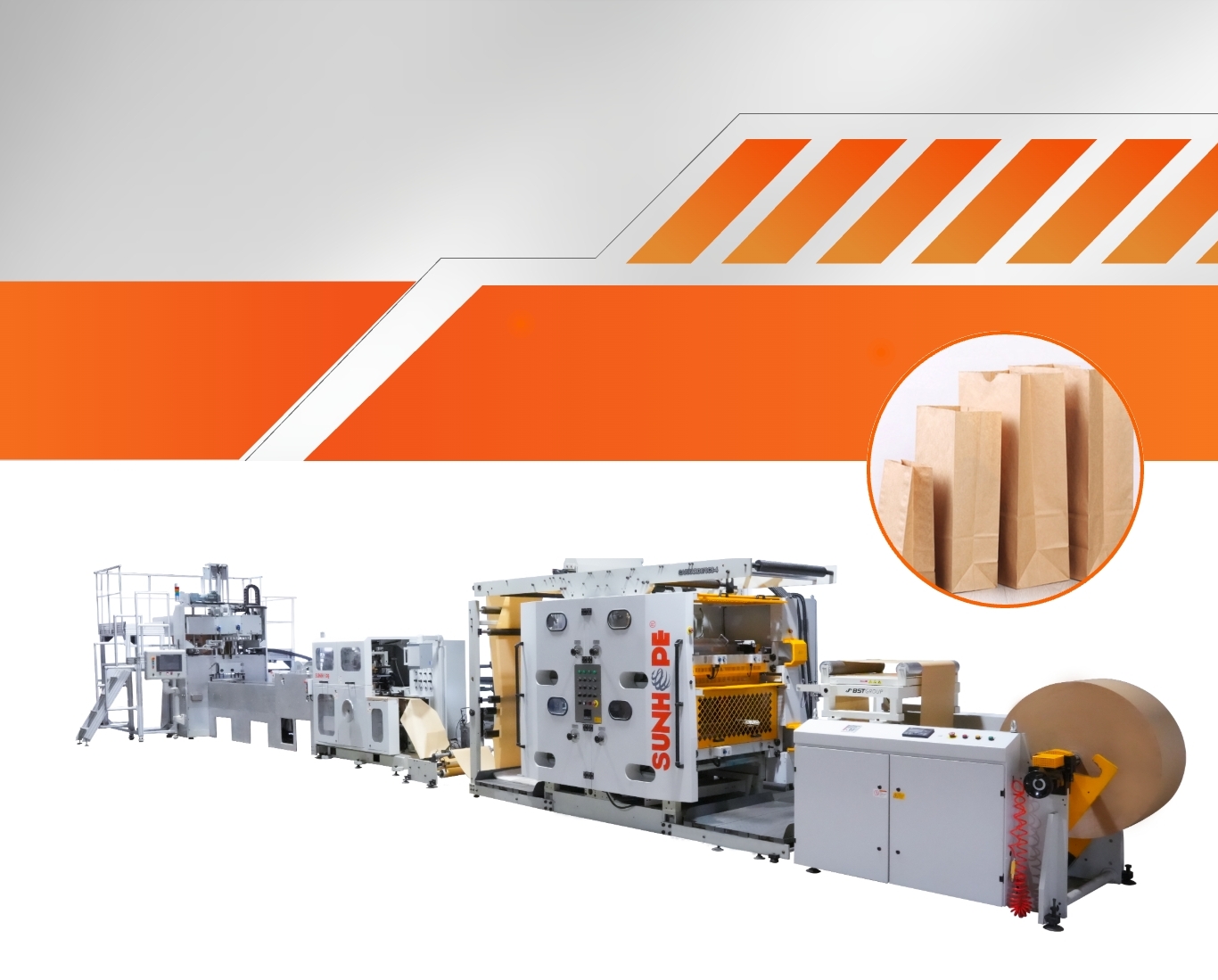

High Speed Single Size Square Bottom Paper Bag Machine
| Technical Info | D804A | D806A | DW807A(B Bag) | D808A | DW808A(C Bag) | D812A |
|---|---|---|---|---|---|---|
| Paper Roll Width(mm) | 435 | 510 | 625 | 535 | 693 | 610 |
| Paper Roll Dia.(mm) | ≤1200 | ≤1200 | ≤1200 | ≤1200 | ≤1200 | ≤1200 |
| Paper Roll Core Dia.(mm) | Φ76 | Φ76 | Φ76 | Φ76 | Φ76 | Φ76 |
| Paper Thickness(gsm) | 45-80 | 45-80 | 45-80 | 45-80 | 45-80 | 45-80 |
| Tube Cut Off Length (mm) | 295 | 335 | 359 | 375 | 375 | 415 |
| Bag Face Width(mm) | 127 | 152 | 180 | 155 | 215 | 178 |
| Bag Bottom Size(mm) | 80 | 92 | 120 | 102 | 120 | 115 |
| Bag lengths (mm) | 248 | 280 | 290 | 315 | 305 | 350 |
| Max. Speed (bags/min) | 600 | 550 | 500 | 500 | 500 | 500 |
| Total Power (kW) | 51 | 51 | 51 | 51 | 51 | 51 |
| Machine Weight (kg) | 3500 | 3500 | 3500 | 3500 | 3800 | 3800 |
| Machine Size((LxWxH)m) | 6.3×1.5×1.8 | 6.3x1.5x1.8 | 6.3x1.5x1.8 | 6.3x1.5x1.8 | 6.5x1.5x1.8 | 6.5x1.5x1.8 |
| Options Unit | D804A | D806A | DW807A(B Bag) | D808A | DW808A(C Bag) | D812A |
| 4 Colors Flexo Printing Unit | yes | yes | yes | yes | yes | yes |
| Automatic Packaging | yes | yes | yes | yes | yes | yes |
