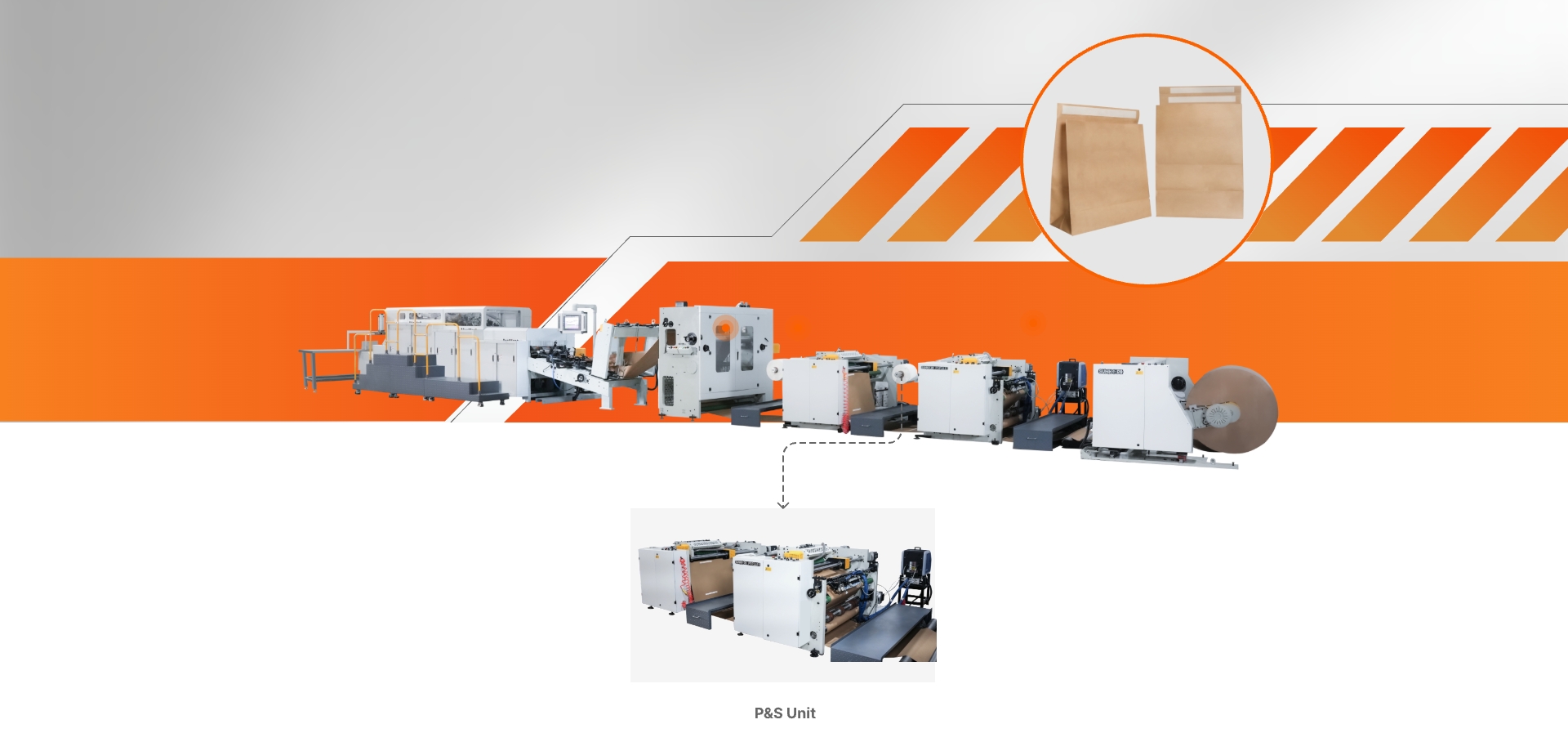

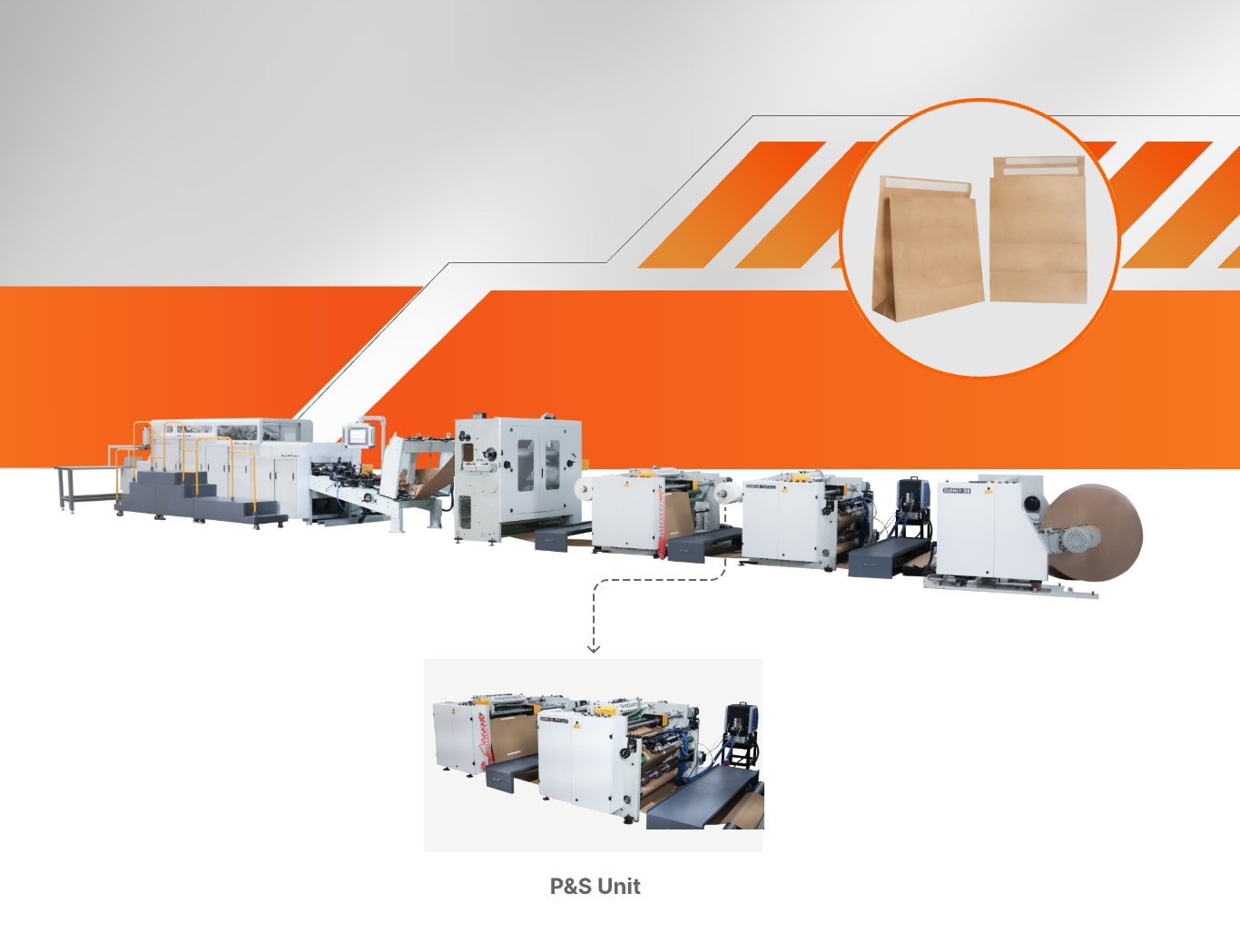

E-Commerce S.O.S. Variable Size Paper Bag Machine-Basic Type-SUNHOPE PACKAGING MACHINERY (UK) LTD

This machine is specially developed for E-Commerce Packaging, which is used to produce E-Commerce SOS Paper Bags with P&S Flap.The machine can process pre-printed paper.The machine can be combined with the SUNHOPE EFT1441B External Flat Handle Application Machine to produce self-sealing take-out bags

The machine adopts servo modular design, which can be embedded indifferent functional modules:

The Second group PSP1350/PSP1510 P&S Unit;,

2-4 Colors Flexo Printer Unit;

DSEP1350/DSEP1510 Servo Die-Cutting Unit;

5HD/6HD Twisted Handle Making Unit.

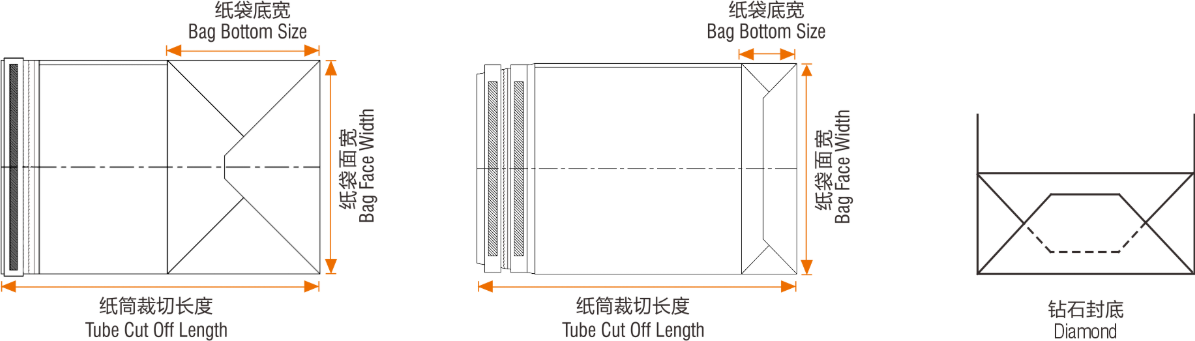

Bag Schematic Diagram

Technical Info	SBH550TE+PSP1510	SBH410TE+PSP1350
Paper Roll Width(mm)	670-1510（*）	520-1310（*）
Paper Roll Dia. (mm)	≤1500	≤1500
Material Core Dia. (mm)	76	76
Paper Thickness (gsm)	80-150	70-150
Tube Length (mm)	360-770	240-655
Bag Body Width (mm)	220-540	175-410
Bottom Size (mm)	80-220	75-230
Flap length (mm)	50；80	50；80
Hot glue length (mm)	40-420	40-400
Hot glue width (mm)	8-20	8-20
Peal paper length (mm)	50-430	50-410
Max.Speed (bags/min)	100	130
Total Power (kW)	83.3 (not included hot glue system)	80 (included PSP,not included hot glue system:5.7kW)
Weight of Machine (kg)	about 16500	about 15500
Overall Dimension (LxWxH)m)	19.71x4.7x1.9	17.376x4.2x2.7
