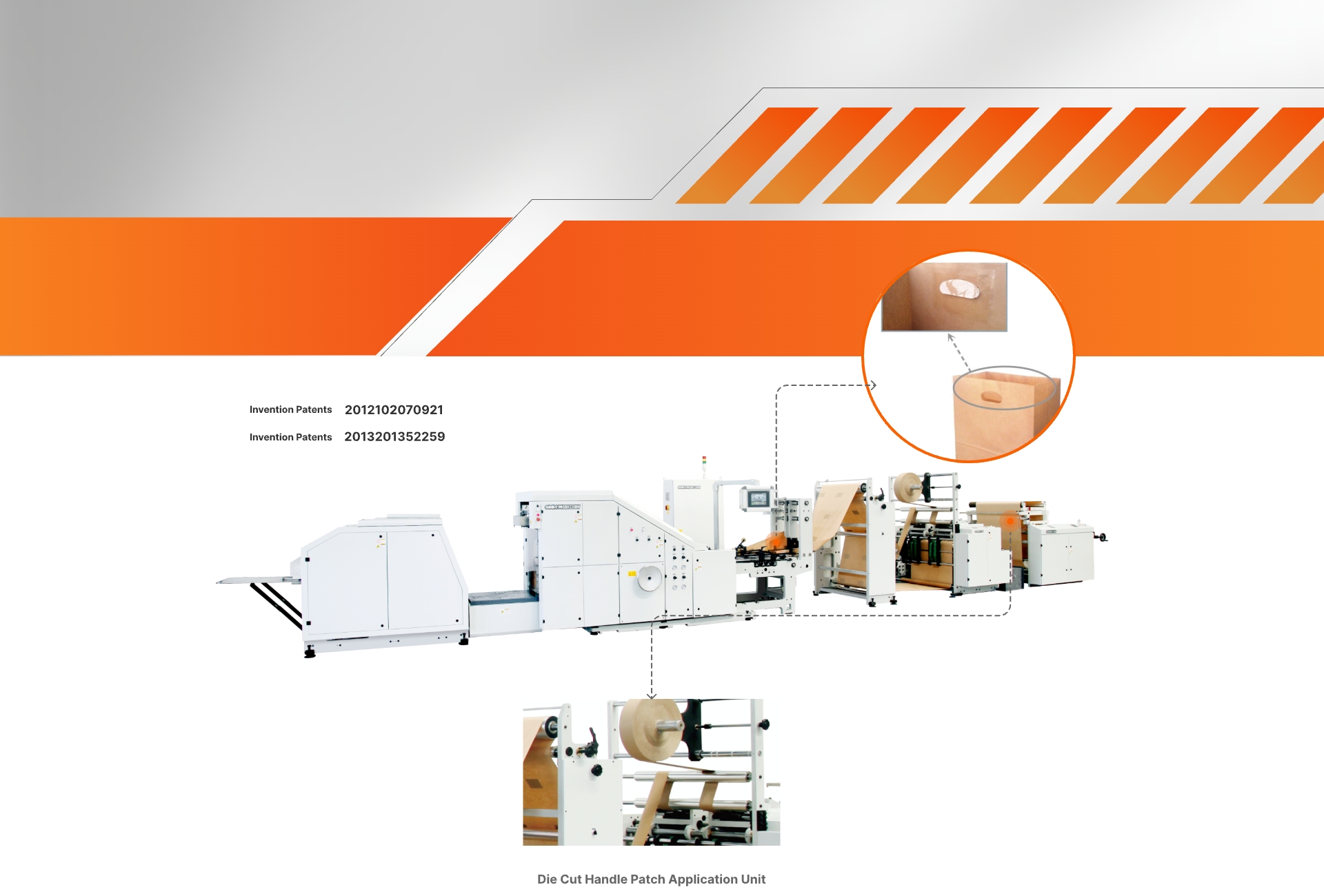

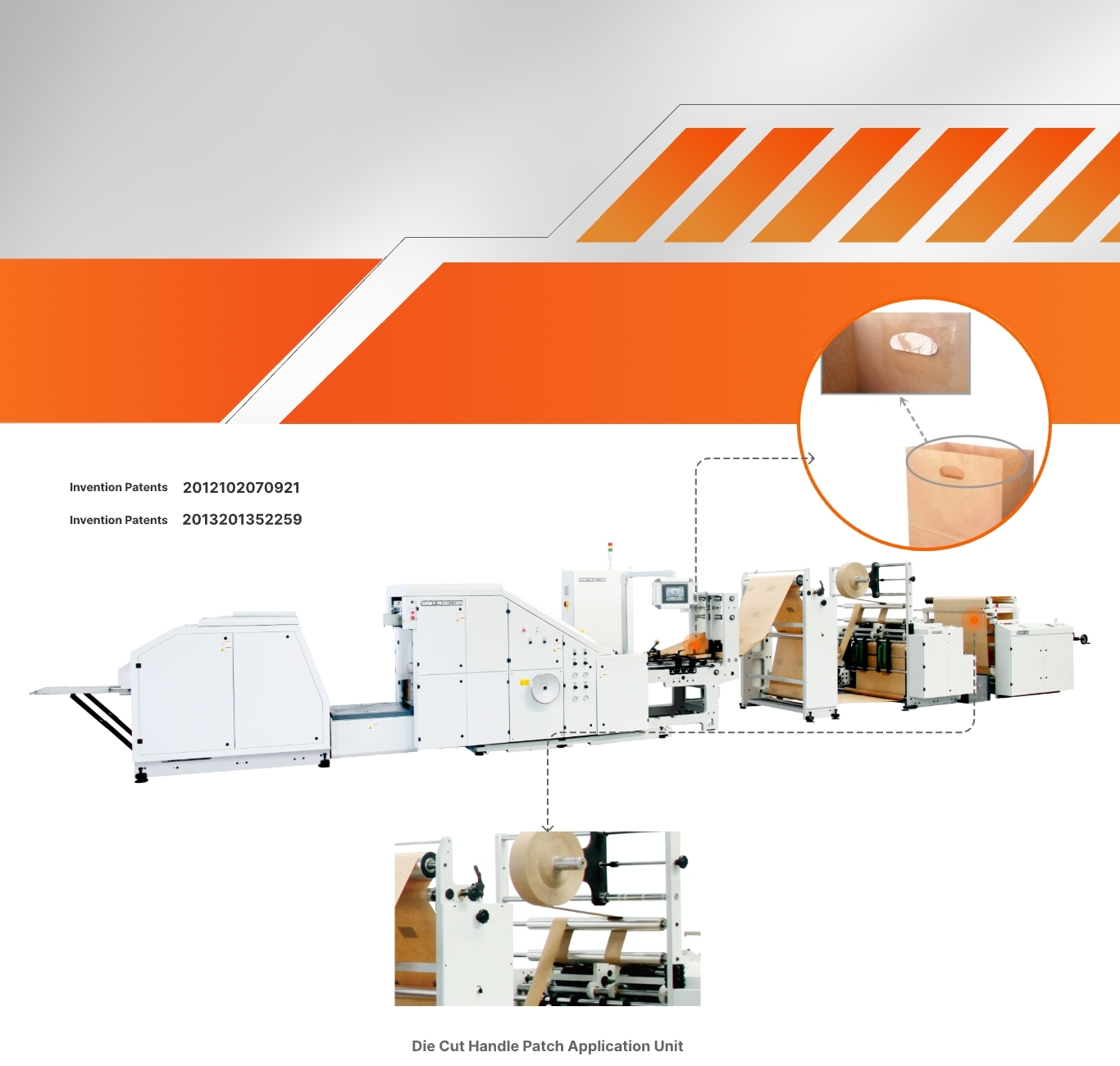

SBH330BW+PAV02C Roll Fed Square Bottom Paper Bag Machine(Die Cut Handle Patch Application Unit) Series
| Technical Info | SBH330W+PAV02C | SBH330BW+PAVO2C |
|---|---|---|
| Paper Roll Width(mm) | 405-1050 | 465-1050 |
| Paper Roll Dia.(mm) | ≤1500 | ≤1500 |
| Paper Roll Core Dia.(mm) | Φ76 | Φ76 |
| Paper Thickness(gsm) | 45-180 | 50-180 |
| Tube Cut Off Length (mm) | 280-540 | 280-540 |
| Bag Face Width(mm) | 120-330 | 150-330 |
| Bag Bottom Size(mm) | 70-150 | 70-180 |
| Window Patching Range (Length)(mm) | 40-210 | 40-210 |
| Window Patching Range (Width)(mm) | 25-180 | 25-180 |
| Max.die Diameter(mm) | 400 | 400 |
| Inner Diameter(mm) | 75 | 75 |
| Paper Patch Thickness(gsm) | 120-250 | 120-250 |
| Fllm Patch Thickness(gsm) | 28-50 | 28-50 |
| Max. Speed (bags/min) | 230 | 220 |
| Bag Machine Total Power (kw) | 14.5 | 14.5 |
| PAV02C Total Power (kw) | 12.9 | 12.9 |
| Machine Weight (kg) | About 9500 | About 9500 |
| Machine Size((LxWxH)m) | 14.7x3.1x1.96 | 14.7x3.1x1.96 |
| Three Types Bottom Seal | in | in |
| Servo Lip Cut Device | in | in |
| 1-4 Colors Flexo Printer Unit | in | in |
| DLO2 Servo Two-layer Unit | in | in |
| Servo Twist Handle Unit | in | in |
| Servo Flat Handie Unit | in | in |
