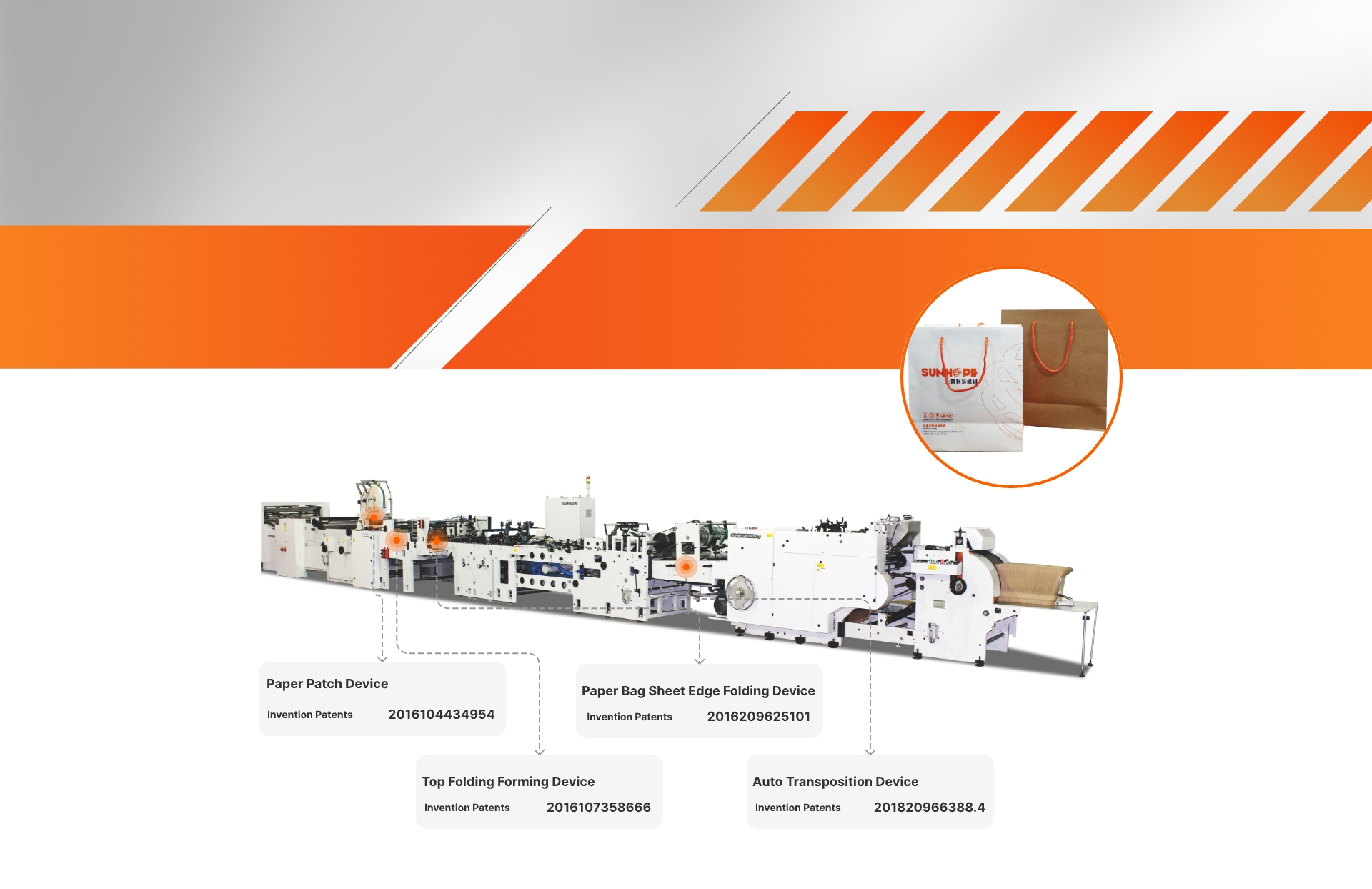

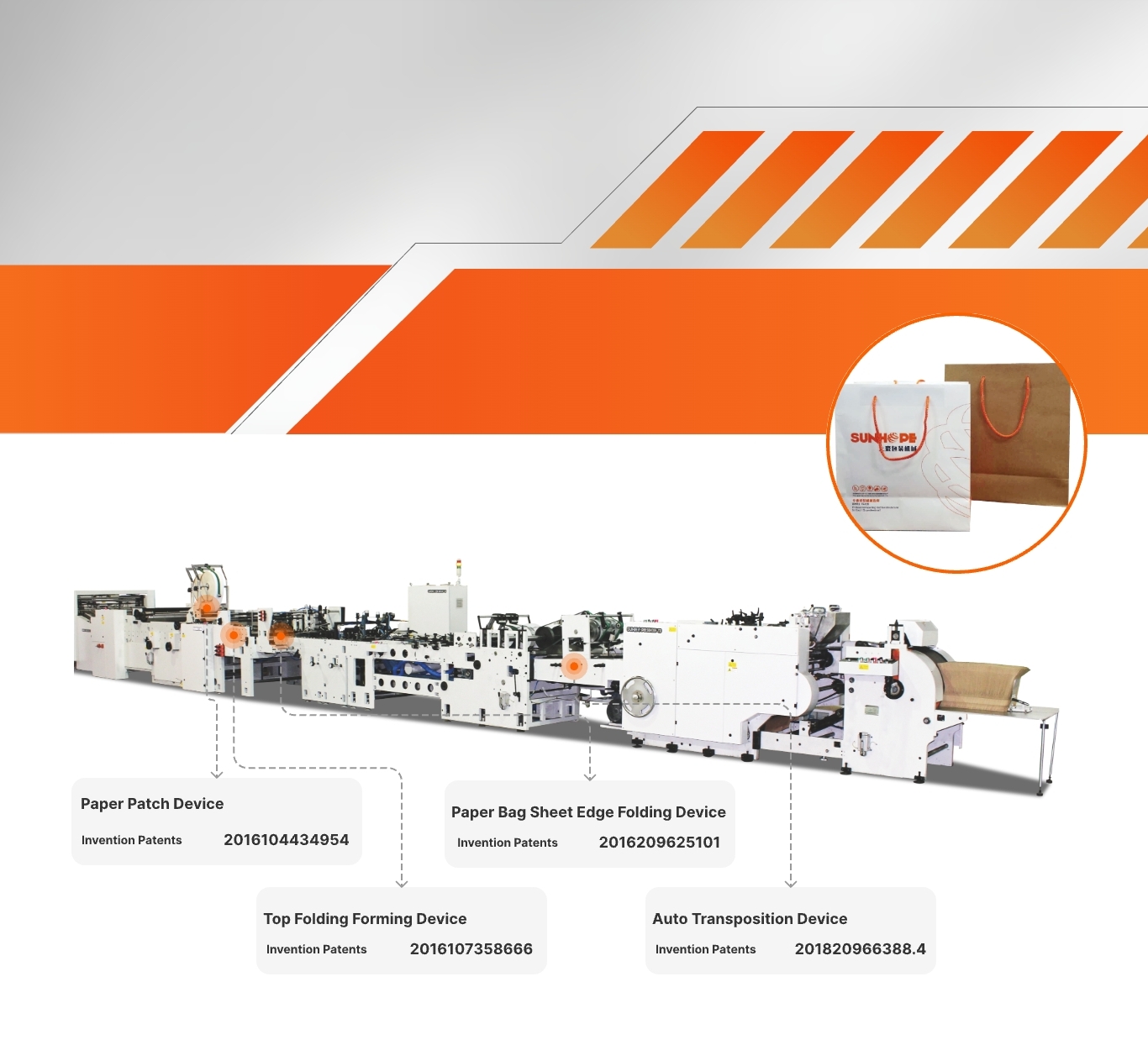

SBH35F-TD Fully Auto Sheet-Fed Square Bottom Paper Bag Machine Series
| Technical Info | SBH24F-TD | SBH35F-TD | SBH45F-TD |
|---|---|---|---|
| Sheet Width(mm) | 325-720 | 510-1050 | 660-1290 |
| Sheet Length(mm) | 250-460 | 350-600 | 340-630 |
| Paper Thickness(gsm) | 100-180 | 100-190 | 128-250 |
| Bag Face Width(mm) | 100-240 | 160-350 | 220-450 |
| Bag Bottom Size(mm) | 60-100 | 70-150 | 100-180 |
| Bag Mouth Fold Width(mm) | 30-50 | 30-60 | 30-60 |
| Reinforced Paper Width(mm) | 25-45 | 25-55 | 25-55 |
| Reinforced Paper Length(mm) | 80-225 | 80-330 | 100-400 |
| Total Power(kw) | 27 | 27 | 27 |
| Machine Size((LxWxH)m) | 20x2.71x2.05 | 20x3x2.05 | 20x3.2x2.05 |
